| Place of Origin: | Changzhou, China |
| Marca: | trusTec |
| Certificazione: | CE |
| Model Number: | YDK-55-6A8-SGR |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Prezzo: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

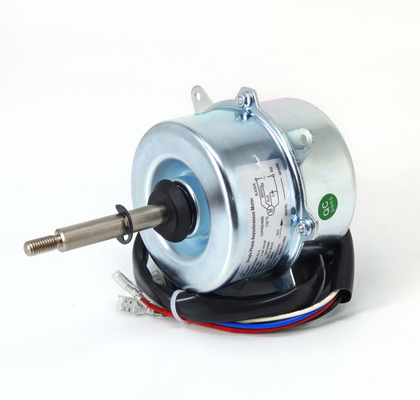

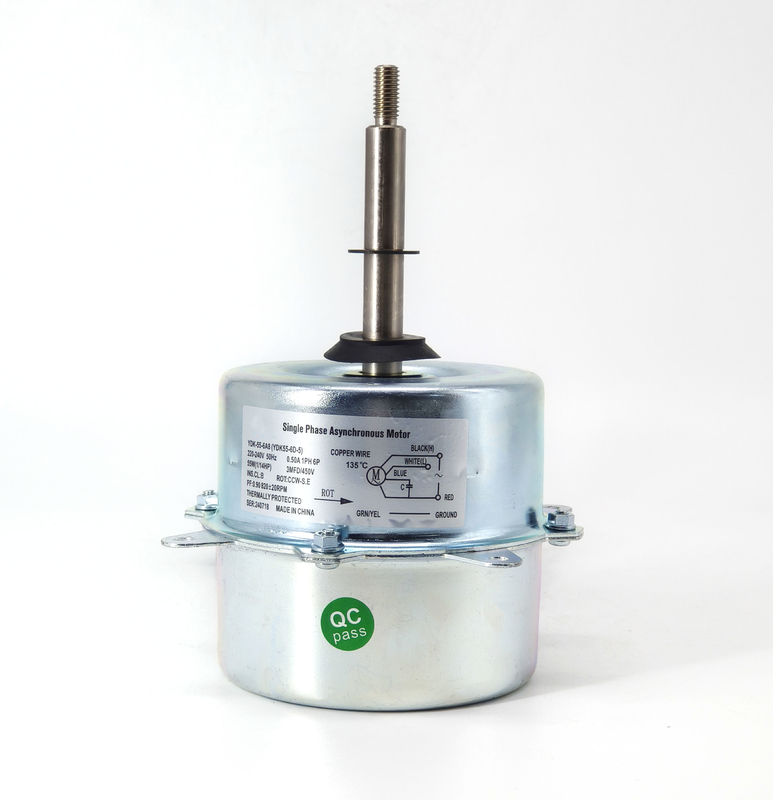

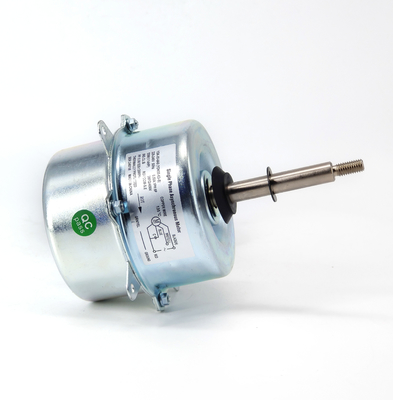

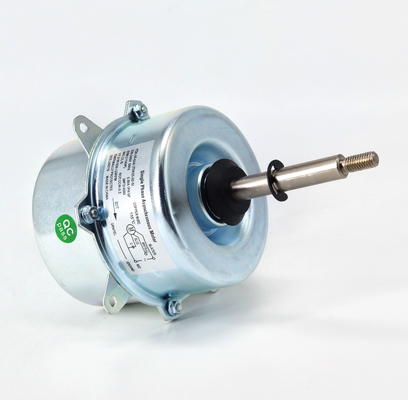

| Product: | Outdoor Fan Motor | Frame Size: | 95mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220-240V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped with an Automatic Thermal Overload | Current: | 0.5A |
| Phase: | Single Phase | Output HP: | 55W |
| Shaft Flats: | One flat | Rated Speed: | 820±20RPM |
| Bearings: | Ball Bearing | Pole: | 6P |
| Mounting: | Stud Mounting All Angel | Capacitor: | 3.0MFD/450V |
| Insulation Class: | Class B | Shaft Diameter: | 0.47" /12mm |
| Rotation: | CCW-SE | Shaft Length: | 3.48" /88.5mm |
| Max. Ambient Temperature: | 40℃/104℉ | Flat Length: | 0.63" /16mm |
| PF: | 0.9 | Lead Length: | 43.3" /1100mm |
| Housing Length: | 3.58" /91mm | ||
| Evidenziare: | Motore di ventilatore esterno da 55 W,Motore di ventilatore esterno a 820 giri al minuto |
||
