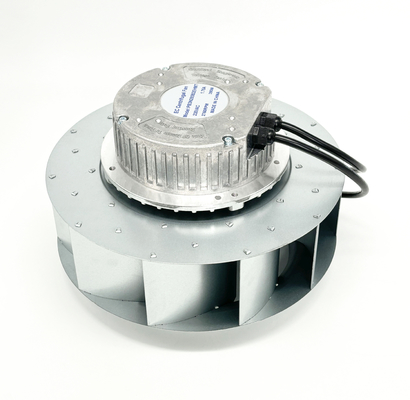

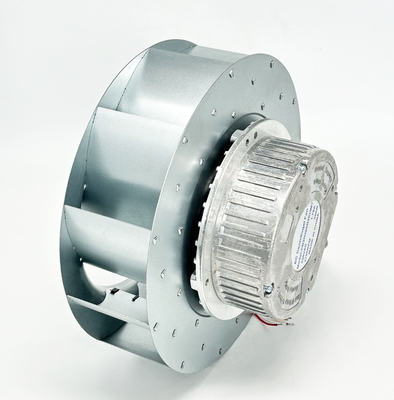

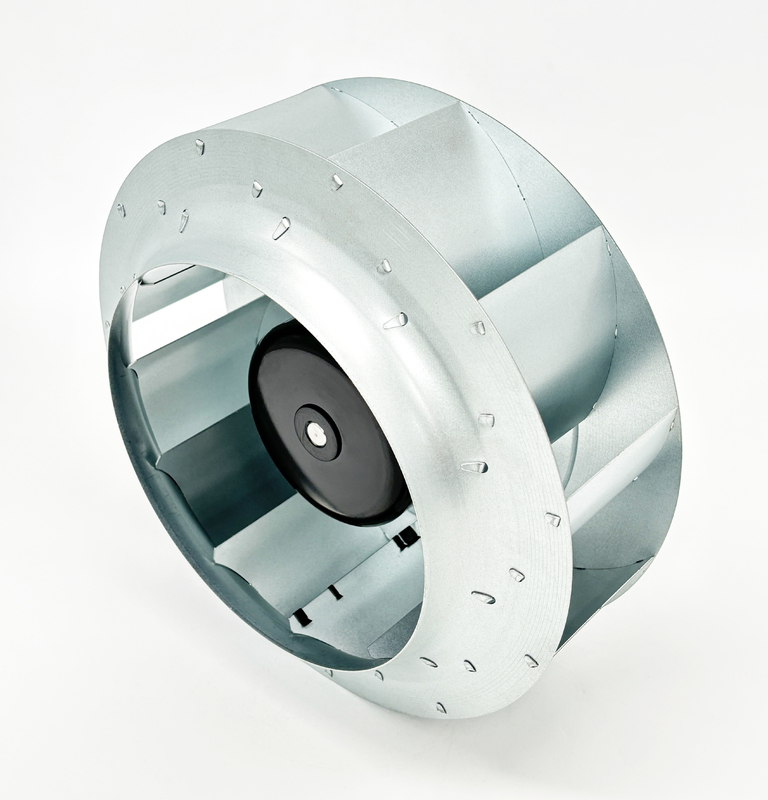

EC Ventilatore centrifugo - 390W 2760RPM 230V 50/60Hz Ingresso di controllo 0~10VDC / PWM
Luogo d'origine:Changzhou, China
Marchio:trusTec
Certificazione:CE
Numero di modello:PB3N280B2EHMT
Quantità minima di ordine:200 pcs
Prezzo:Negotiable (FOB/CNF/CIF)
Termini di pagamento:T/T, L/C
Capacità di fornitura:100,000 pcs per month
Tag:
Dettagli del prodotto
Evidenziare:
Ventilatore centrifugo 230V
,Ventilatore centrifugo 50/60 Hz
,2760RPM Ventilatore centrifugo
Product:
Ventilatore centrifugo della CE
Supply Voltage:
230 V
Thermal Overload:
con una tensione massima di 1000 V o inferiore a 1000 V
Supply Frequency:
50/60 Hz
Mounting:
Stallone montato All Angel
Input Current:
1.75A
Bearings:
Cuscinetto a sfera di NMB
Air Flow:
1649CFM /2800 m3/h
Mounting Orientation:
Tutti gli angoli
Input Power:
390W
Insulation Class:
Classe B
Speed:
2760 giri al minuto
Rotation:
CW
Dimension:
Ø 281 mm x 176 mm
Signal Output:
FG (generatore di frequenza)
Operating Temperature:
-25℃ a 60℃
Speed Control:
Input di controllo 0~10VDC/PWM
Lead Length:
19.6" / 500 mm
Number Of Blades:
11
Weight:
5000g
Descrizione del prodotto
