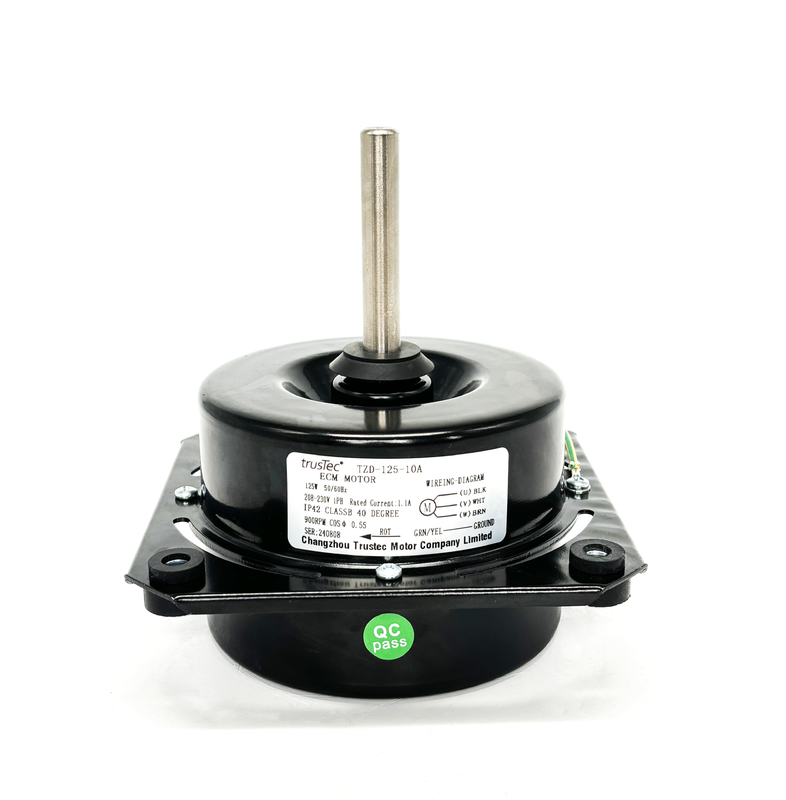

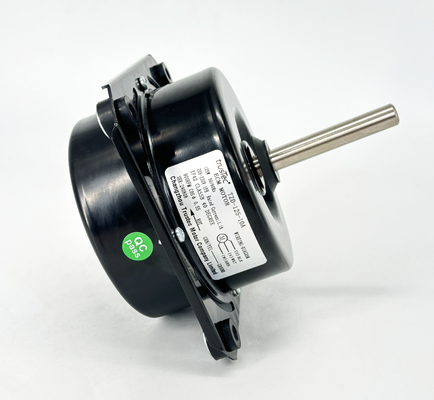

Motore ECM - 125W 900RPM 220V 50/60HZ 0-10V controllo velocità
Luogo d'origine:Changzhou, Cina
Marchio:trusTec
Certificazione:CE
Numero di modello:TZD-125-10A-TVM
Quantità minima di ordine:200 pezzi
Prezzo:Negotiable (FOB/CNF/CIF)
Termini di pagamento:T/T, L/C
Capacità di fornitura:100, 000 p.p. al mese
Tag:
Dettagli del prodotto
Evidenziare:
Motore BLDC da 125 W
,Motore BLDC a 900 giri al minuto
,Motore BLDC 220V
Product:
Motore a commutatore elettronico (ECM)
Supply Voltage:
220 V
Enclosure Type:
TEAO ((Totalmente chiuso aria sopra)
Supply Frequency:
50/60hz
Thermal Overload:
con una tensione massima di 1000 V o inferiore a 1000 V
Current:
1.65A
Phase:
Fase singola
Output Power:
125W
Mounting:
Stallone montato All Angel
Speed:
900rpm
Bearings:
Cuscinetti a sfera
Poles:
10 penny
Mounting Orientation:
Tutti gli angoli
Shaft Length:
3.04" / 78mm
Insulation Class:
Classe B
Frame Size:
120 mm
Max. Ambient Temperature:
40°C/104°F
Shaft Diameter:
1/2" / 12,7 mm
Rotation:
CCW ((SE)
Flat Length:
1.99" / 50mm
Speed Control:
0-10V VSP
Lead Length:
11.8" / 300 mm
Other:
FG e 10VDC
