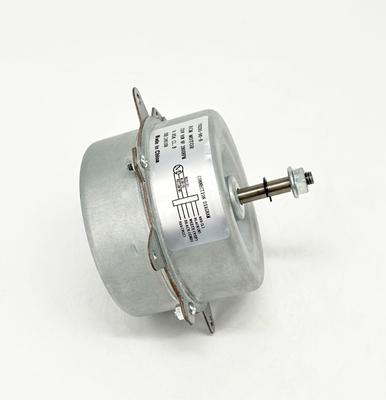

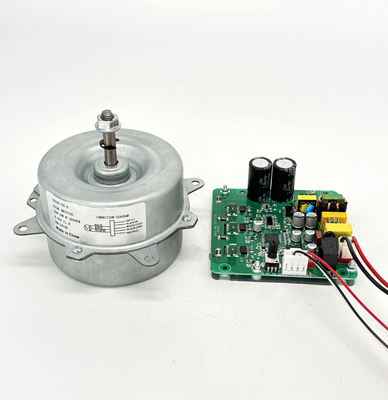

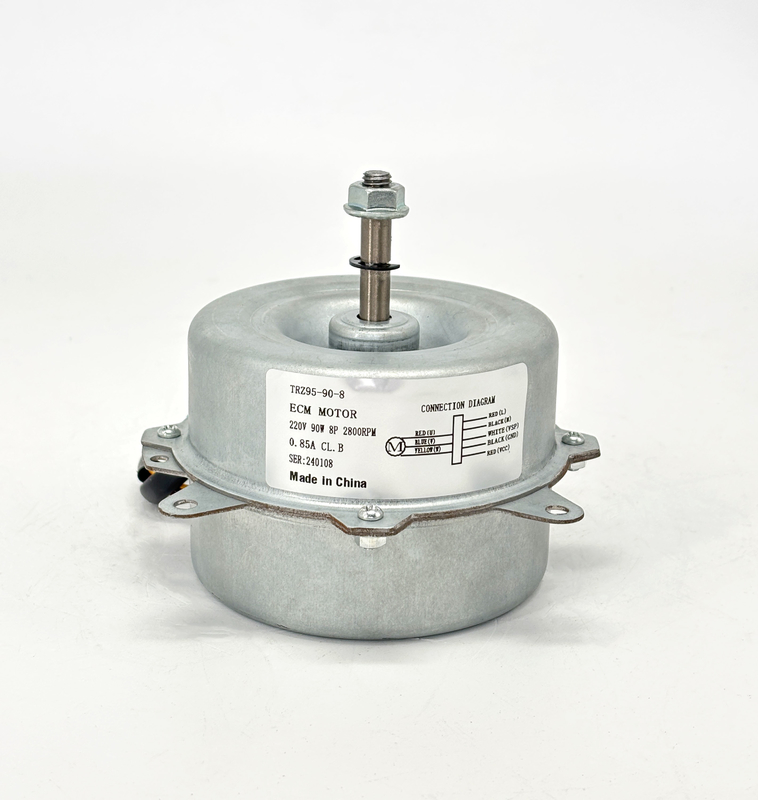

Motore ECM per ventilatore - 90W 2800RPM 220V 50HZ
Luogo d'origine:Changzhou, Cina
Marchio:trusTec
Certificazione:CE
Numero di modello:TRZ95-90-8
Quantità minima di ordine:200 pezzi
Prezzo:Negotiable (FOB/CNF/CIF)
Termini di pagamento:T/T, L/C
Capacità di fornitura:100, 000 p.p. al mese
Tag:
Dettagli del prodotto
Evidenziare:
Motore ECM per ventilatore a 2800 giri al minuto
,Motore ECM da 90 W per ventilatore
,Motore ECM da 220 V per ventole
Product:
Motore a commutatore elettronico (ECM)
Frame Size:
95MM
Motor Type:
Sopratore a propulsione diretta
Supply Voltage:
220 V
Enclosure Type:
TEAO ((Totalmente chiuso aria sopra)
Supply Frequency:
50 Hz
Thermal Overload:
con una tensione massima di 1000 V o inferiore a 1000 V
Current:
0.85A
Phase:
Fase singola
Output Power:
90W
Mounting:
Tutto angelo
Speed:
2800 giri al minuto
Bearings:
Cuscinetto a sfera
Poles:
8P
Mounting Orientation:
Stallone montato All Angel
Shaft Diameter:
0.26" / 6.5mm
Insulation Class:
Classe B
Shaft Length:
1.49"/38mm
Rotation:
CW(SE)
Lead Length:
7.87"/200mm
Max. Ambient Temperature:
40°C/104°F
Speed Control:

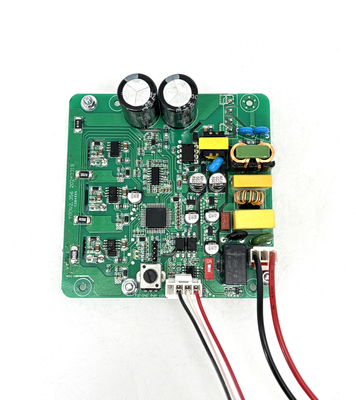

Controllo della velocità 0-10V
Descrizione del prodotto
Riepilogo Prodotto
