TRUSTEC MOTOR LA TUA FABBRICA DI FIDUCIA
Sales & Support:

|
| Place of Origin: | Changzhou, China |
| Marca: | trusTec |
| Certificazione: | CE、UL529388 |
| Model Number: | YSK-200-6A60-UBV |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Prezzo: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

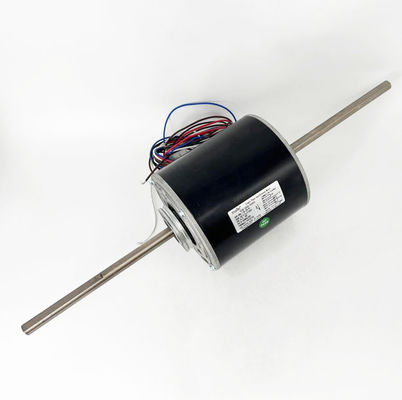

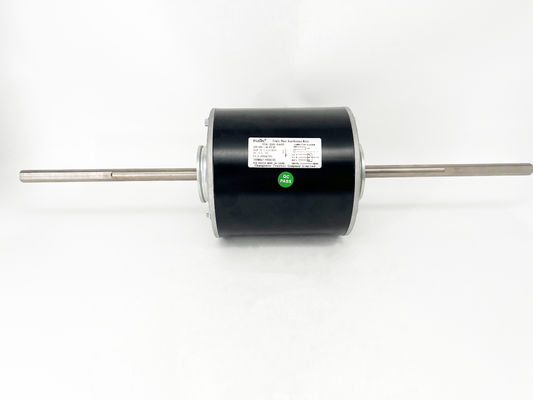

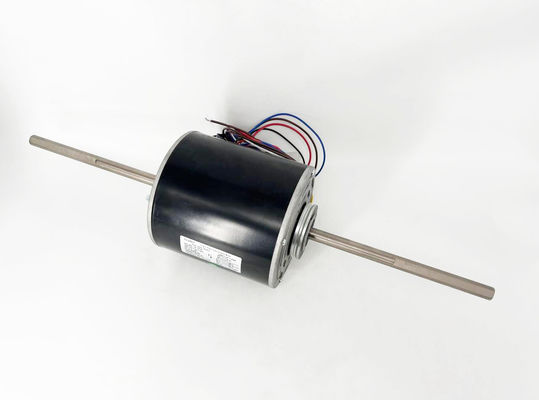

| Product: | AC Fan Coil Unit Motor | Frame: | 142mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.6A |
| Phase: | Single Phase | Output HP: | 200W |
| Shaft Flat: | One Flat | Speed: | 900RPM/3SPD |
| Mounting Orientation: | All Angle | Capacitor: | 5uF/450V |
| Insulation Class: | Class B | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.55"/14mm |
| PF: | 0.94 | Shaft Length: | 8.29"/210.5mm*2 |
| Rotation: | CCW-LE | Flat Length: | 3.94"/100mm*2 |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 39.37"/1000mm |
| Motor Shell Length: | 5.67"/144mm |
Persona di contatto: Selena Chai
Telefono: +86-13961191626
Fax: 86-519-85109398
