TRUSTEC MOTOR LA TUA FABBRICA DI FIDUCIA
Sales & Support:

|
| Place of Origin: | Changzhou, China |
| Marca: | trusTec |
| Certificazione: | CE、UL529388 |
| Model Number: | YDK-185-4A80-CHG |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Prezzo: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

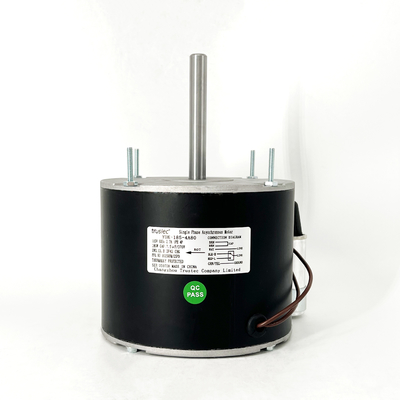

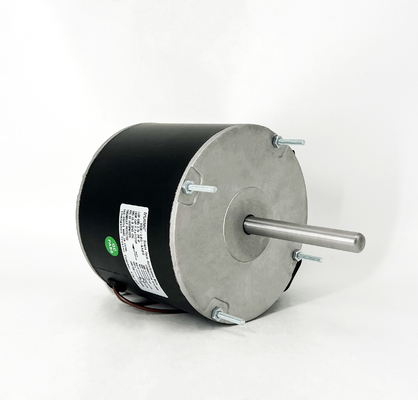

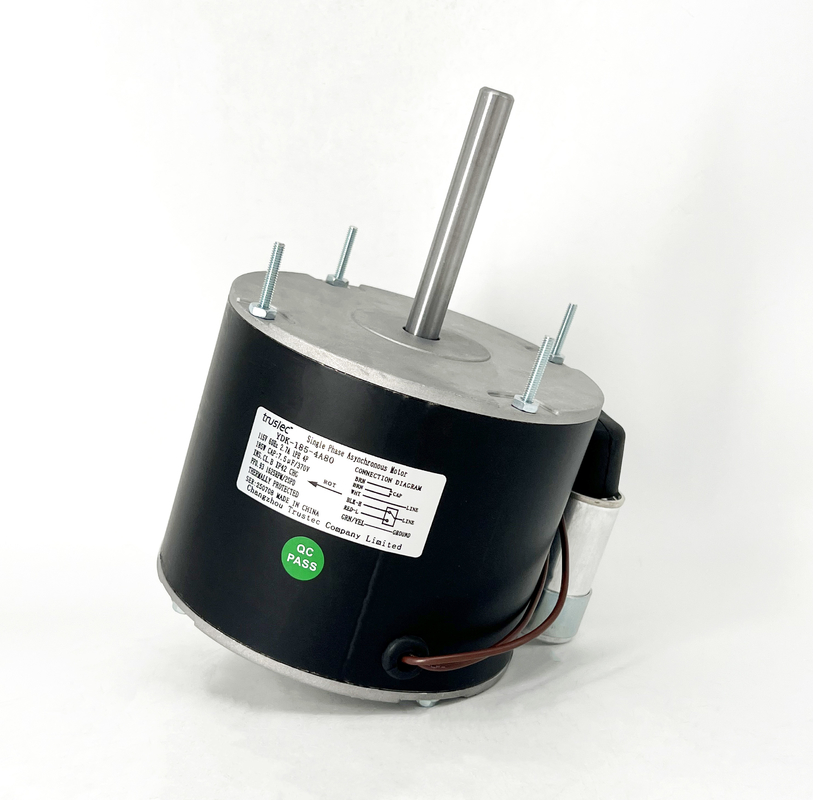

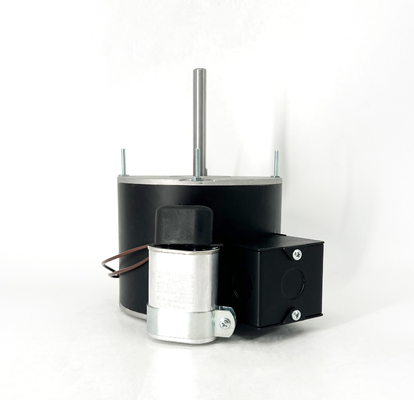

| Product: | Condenser Fan Motor | Frame: | 142mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 115V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 2.7A |
| Phase: | Single Phase | Output HP: | 185W |
| Shaft Flat: | One Flat | Speed: | 1625RPM/2SPD |
| Mounting Orientation: | All Angle | Capacitor: | 7.5μF/370V |
| Insulation Class: | Class B | Pole: | 4P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5"/12.7mm |
| Rotation: | CW | PF: | 0.93 |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 11.81"/300mm |
| Motor Shell Length: | 4.37"/111mm | Shaft Length: | 4.72"/120mm |
| Flat Length: | 3.23"/82mm | Screw Length: | 1.06"/27mm |
